The Stack
01 // Flight Controller

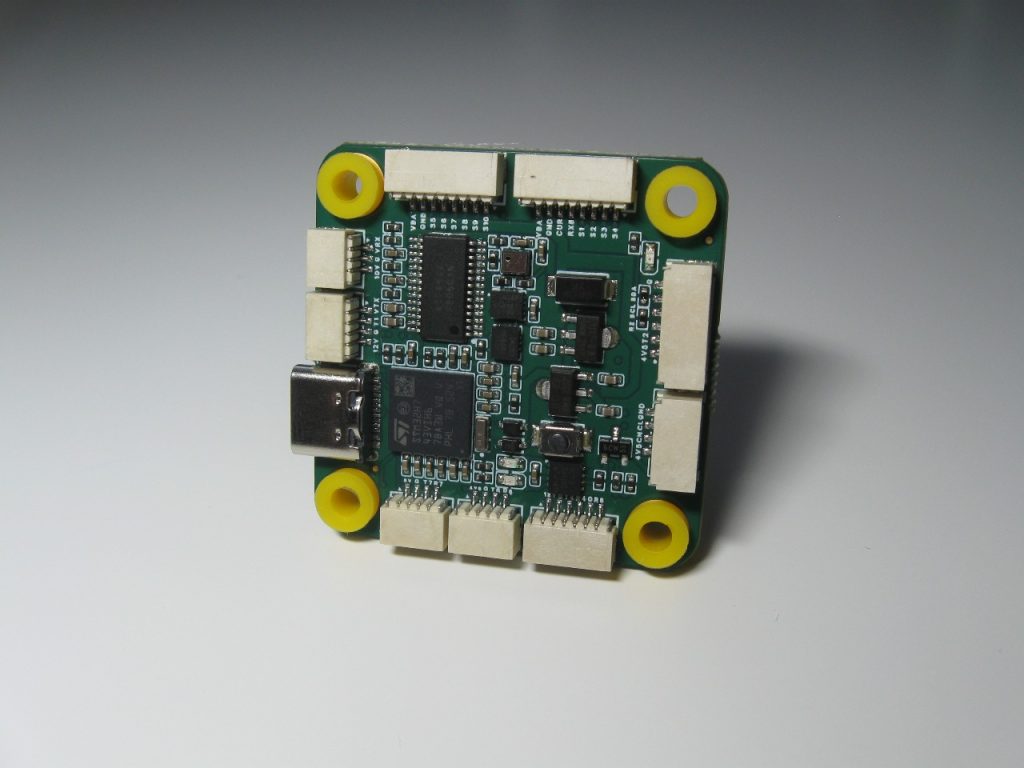

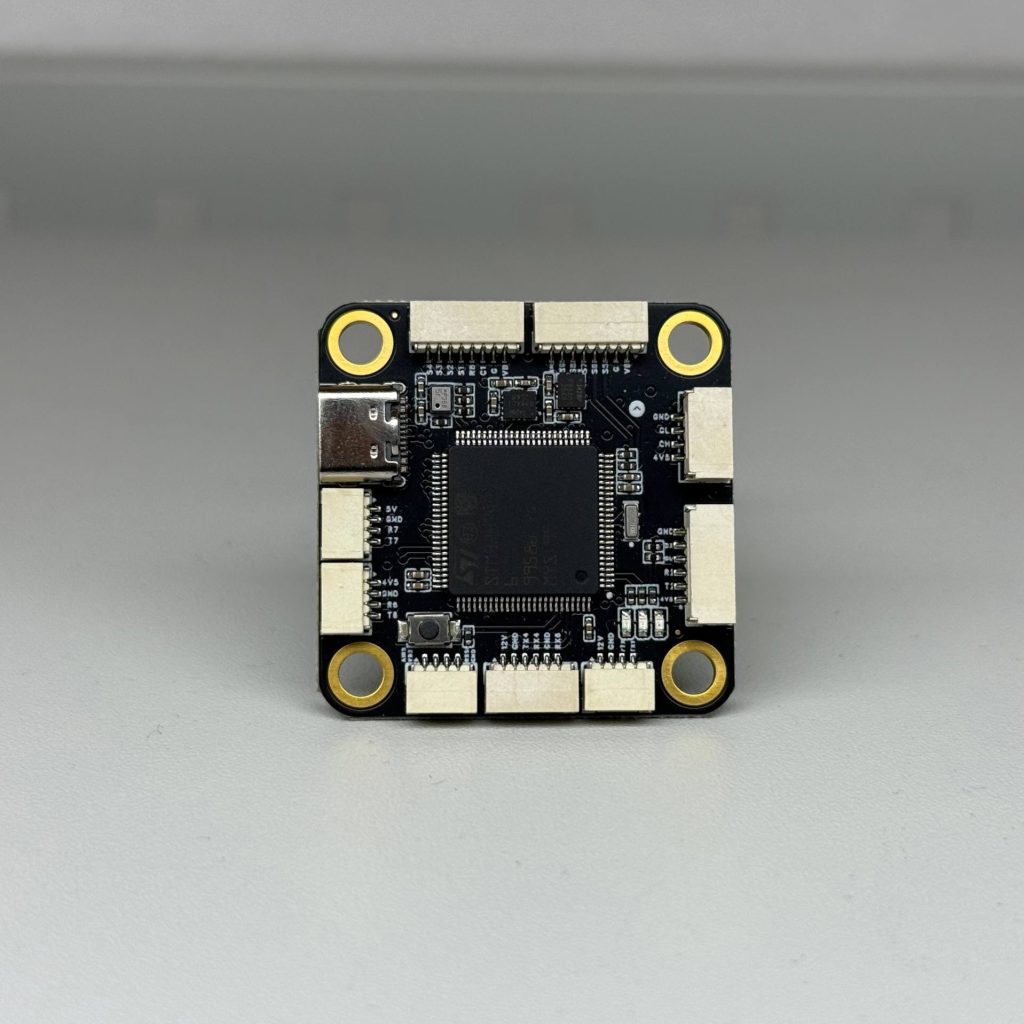

FlyUp H743 Max
STM32H743 running at 480MHz with dual ICM42688p IMUs, built-in OSD, and MicroSD blackbox. Handles 2–8S LiPo, 13 PWM outputs, DroneCAN, and 7...
[ View Details → ]
02 // ESC / Motor Control

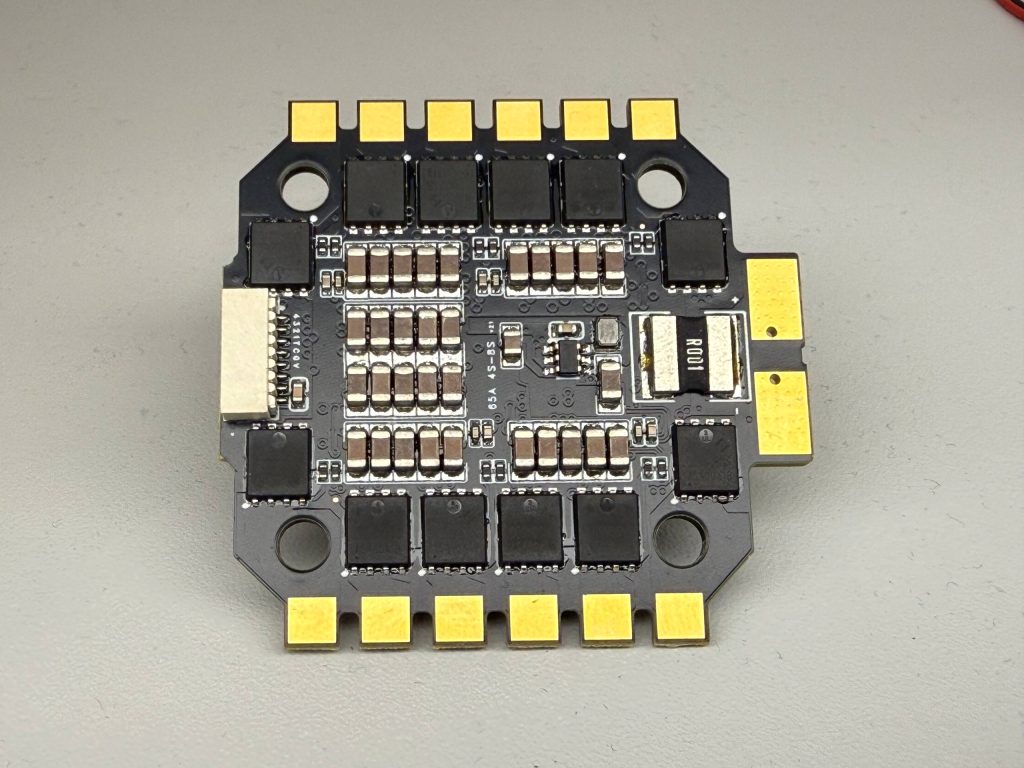

FlyUp ESC-60A 4in1 8S
4-in-1 electronic speed controller built for demanding multirotor platforms. 60A continuous per channel with 80A burst, powered by four independent STSPIN32F0A processors....
[ View Details → ]
03 // Video System

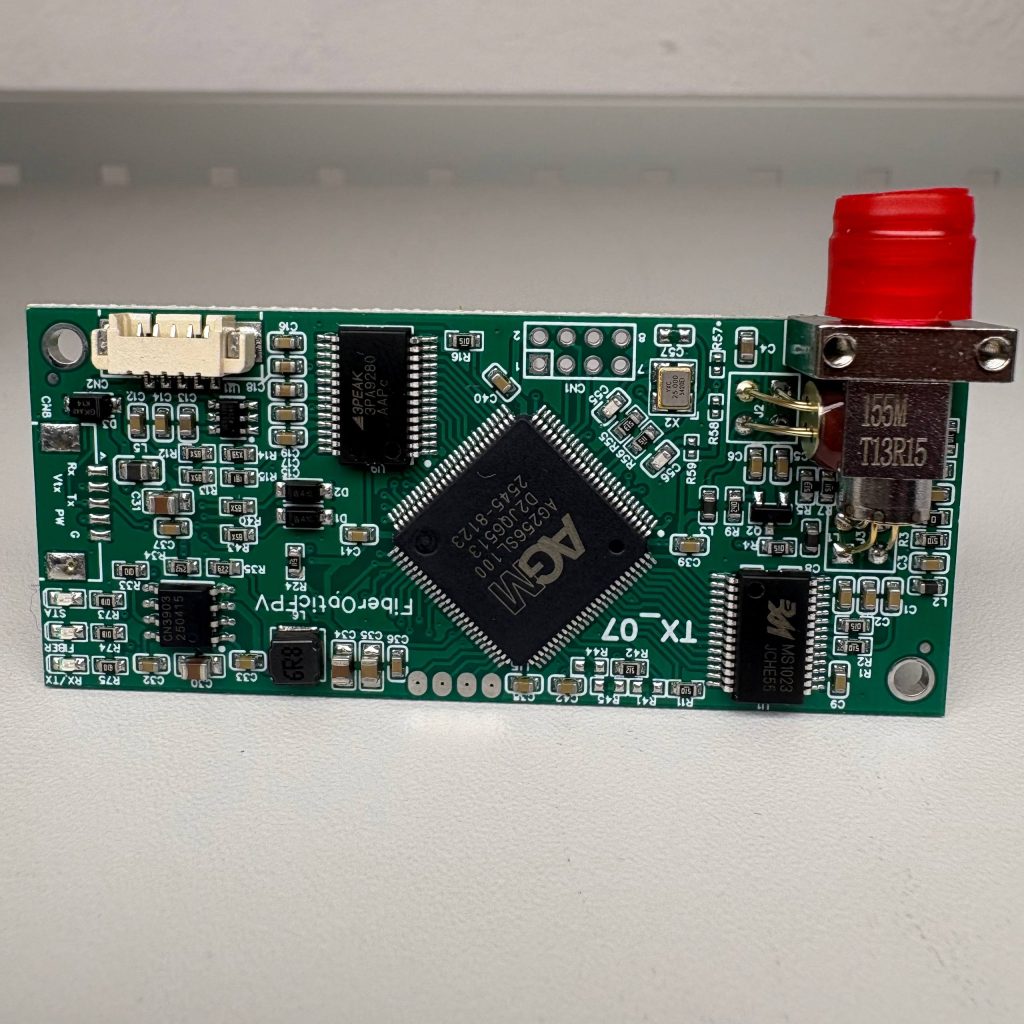

FlyUp Media Converter TX
Airborne CVBS analog video media converter for UAV platforms. Transmits video at 1310nm while simultaneously receiving SBUS/CRSF control data at 1550nm. 25MHz...
[ View Details → ]
04 // Video System

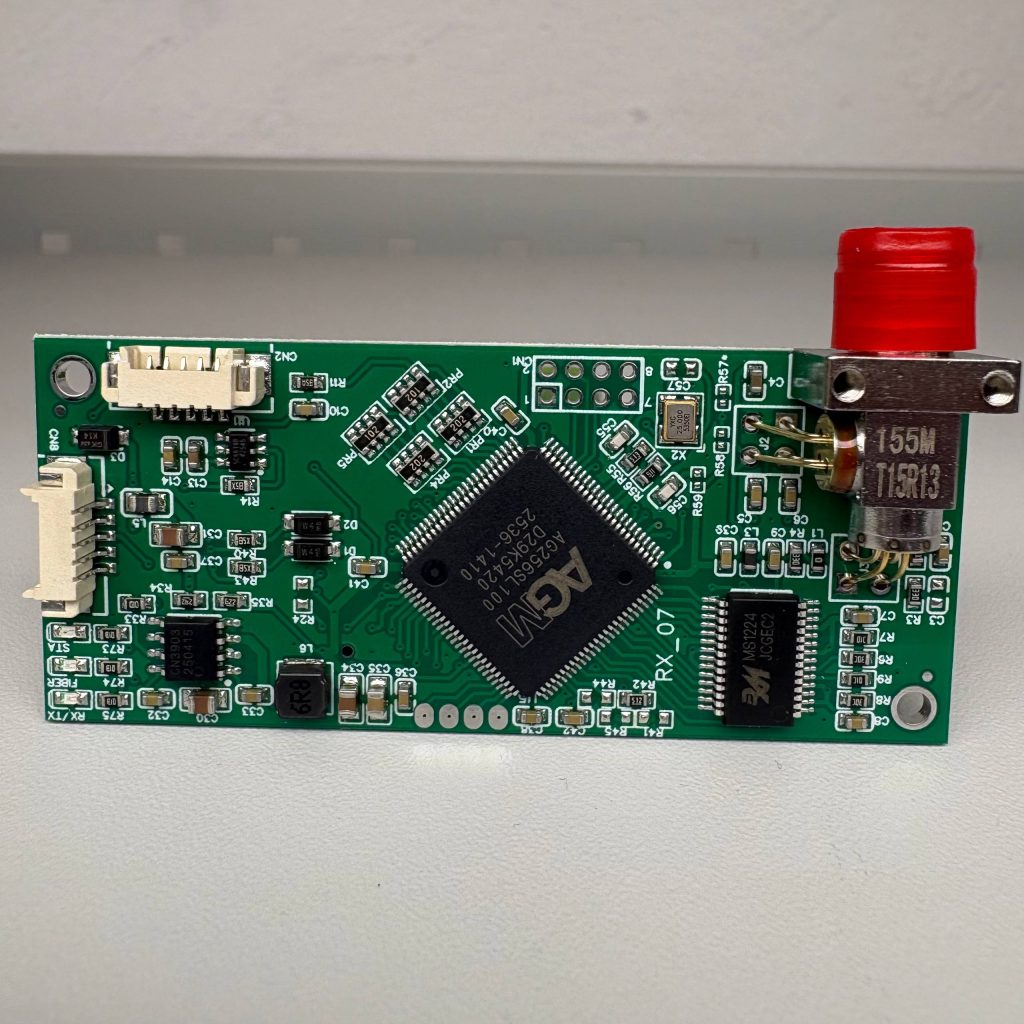

FlyUp Media Converter RX
Ground station CVBS analog video media converter. Receives video at 1310nm and transmits SBUS/CRSF data at 1550nm. Features an on-board potentiometer for...
[ View Details → ]
